Quick answer: To check if your car AC compressor is working, start the engine, turn the air conditioning to maximum cold, and check under the hood. For traditional compressors, listen for an audible click and verify that the center hub of the compressor pulley spins along with the outer belt ring. For modern clutchless compressors, you must use manifold pressure gauges or a diagnostic scanner to verify compressor engagement, as their pulleys spin continuously.
Key takeaways:
The air conditioning compressor acts as the pump that circulates refrigerant throughout your vehicle's climate control system. Driven by the engine serpentine belt, it draws in low-pressure, cool gaseous refrigerant from the evaporator, compresses it into a high-pressure, hot gas, and pushes it toward the condenser.
This compression process raises the temperature of the refrigerant, allowing the condenser to shed heat to the outside air. The refrigerant then changes into a liquid state, flows through the expansion valve, and returns to the evaporator as a cold, low-pressure liquid to absorb heat from the cabin. Without a functional compressor, the refrigeration cycle stalls, and the vents will only blow warm air.
Recognizing the early symptoms of a failing compressor can prevent minor issues from turning into catastrophic system damage. According to diagnostic guidelines published by AutoZone (https://www.autozone.com/diy/climate-control/signs-of-a-bad-a-c-compressor), the primary indicators of a failing AC compressor include:
Determining the state of your compressor requires a systematic approach. Denso, a leading original equipment manufacturer, emphasizes this diagnostic philosophy in their technical guide (https://www.densoautoparts.com/reference-ac-compressor-troubleshooting/): "Following a set procedure to base your troubleshooting on will help find the root cause of a problem and prevent unnecessary repeat repairs."
Follow these steps to diagnose your AC compressor.

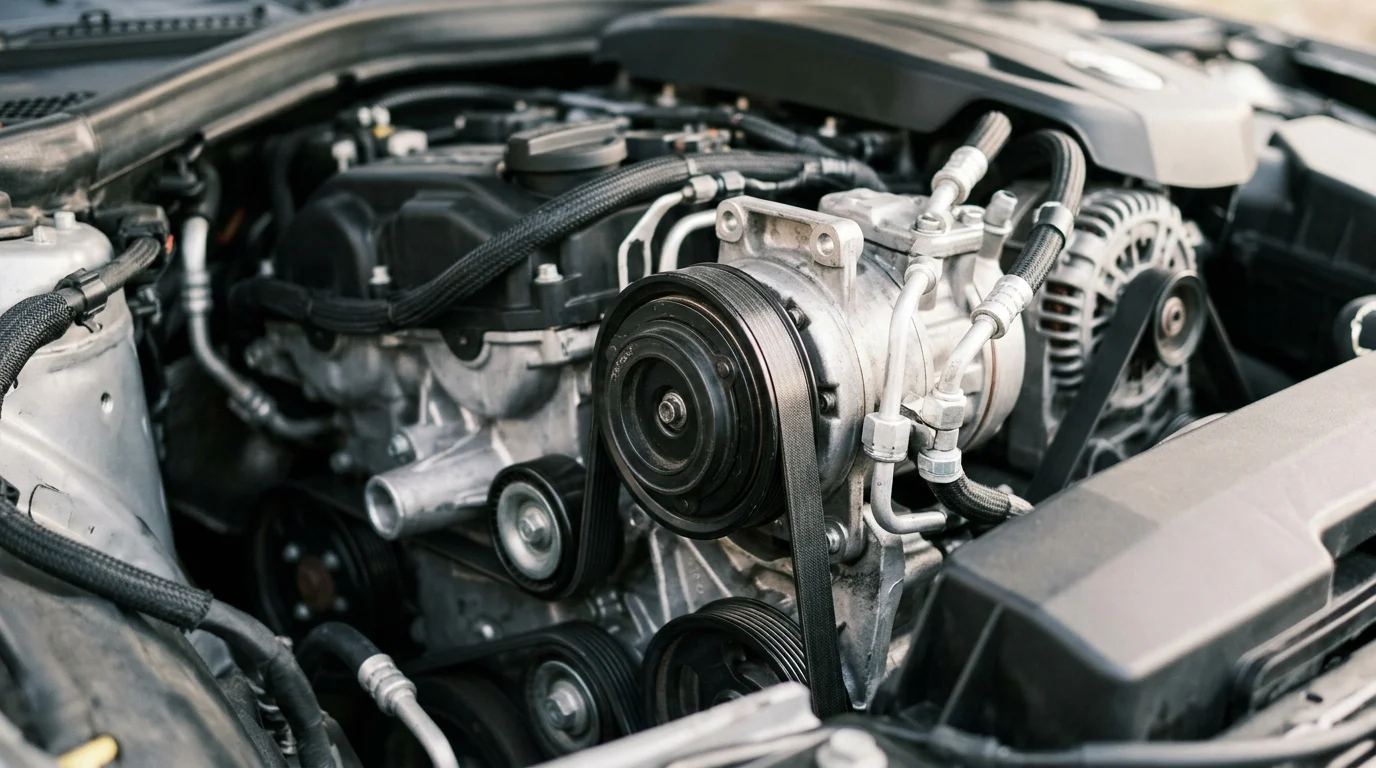

Before starting the vehicle, inspect the compressor under the hood. Locate the compressor unit, which is typically bolted to the front of the engine block and driven by the serpentine belt. Look for cracks or wear on the belt. Check the compressor housing for green-colored UV dye or oily residue, which indicates a seal leak. Try to rotate the front clutch hub by hand. If it is completely seized and will not budge, the internal compressor components have suffered mechanical lockup.
Start the engine, set the AC system to maximum cold, and set the fan speed to high. Observe the compressor pulley. You should hear a sharp metallic click as the electromagnetic clutch engages. The center hub of the pulley should begin spinning smoothly. If the outer pulley rotates with the belt but the center hub remains stationary, the compressor is not engaging.
If the clutch fails to engage, you must determine if the fault is inside the clutch coil or in the control circuit. Locate the electrical connector on the compressor and unplug it. Set your digital multimeter to measure resistance (ohms). Place the probes on the two terminals of the clutch coil.
According to multimeter testing specifications from Kaiweets (https://kaiweets.com/blogs/news/how-to-test-car-ac-compressor-with-multimeter), a functional clutch coil should show a resistance reading between 3 and 5 ohms. A reading of zero ohms indicates a short circuit, while a reading of infinity (open loop) indicates a broken wire inside the coil.
Next, set the multimeter to DC volts. Measure the voltage on the vehicle-side harness connector with the engine running and the AC turned on. It should show battery charging voltage, typically between 12.0 and 14.5 volts. If there is no voltage, the control circuit is open, indicating a blown fuse, a bad relay, or a triggered safety switch.
AC systems feature low-pressure and high-pressure safety switches. If the refrigerant level drops too low, the low-pressure switch opens the circuit to protect the compressor from running without oil. Connect a manifold gauge set to the service ports. If the static pressure reads below 30 psi, the system is low on charge, and the safety switch has disabled the compressor.
Dave Hobbs, a technical correspondent for the Mobile Air Climate Systems Association (MACS), notes in the MACS Service Reports (https://www.macsw.org/common/Uploaded%20files/MACS%20Service%20Reports/2021%20MSR/2021_05msr4web.pdf) that on Toyota vehicles equipped with Denso flow sensors, a failed sensor reading above 3.7 volts will actively block the AC amplifier from commanding the compressor clutch to engage, setting diagnostic trouble code DTC B1479.
Analysis: A common mistake is attempting to top off refrigerant without recovering the old charge. MACS data shows that reducing the refrigerant charge by just 6 ounces can raise the compressor outlet temperature from 150 F to 182 F, while an 8-ounce deficit pushes it to 204 F. This extreme heat degrades the lubricating oil and destroys the compressor from the inside, even if system pressures seem close to normal on basic gauges.
Note: Working around a running engine poses severe safety risks. Ensure your clothing, hair, and test wires are kept far away from the spinning serpentine belt and electric cooling fans.
Many modern vehicles use clutchless variable displacement compressors instead of electromagnetic clutches. These units use a pulley that spins constantly whenever the engine is running. Internally, a pulse-width modulated (PWM) control valve adjusts the stroke of the pistons to regulate refrigerant flow.
Because these compressors do not click or show a visible clutch engagement, you cannot diagnose them using visual checks. Instead, you must use a diagnostic OBD2 scanner to verify the duty cycle signal (measured in percentage) sent to the control valve. You must also use manifold gauges to monitor the pressure differential. A healthy variable compressor should quickly drop low-side pressure to 25-35 psi and raise high-side pressure to 150-220 psi when activated.
If your diagnostics point to a failed compressor, you must decide between repairing the clutch assembly or replacing the entire unit.
If the internal compressor mechanism rotates smoothly by hand and the system has no leaks, but the coil is electrically dead, you can replace the clutch coil assembly. This repair keeps the refrigerant loop sealed, avoiding the cost of reclaiming and recharging the refrigerant.
However, if the compressor has seized internally or is leaking oil from the shaft seal, you must replace the entire unit. The AC compressor replacement cost ranges from 800 to 1500 dollars, depending on vehicle make and model.
According to MACS service standards (https://www.aa1car.com/library/macs_service_procedures.pdf), when an internal mechanical failure occurs, you must also replace the receiver-drier or accumulator, the expansion valve, and any hose assemblies with inline mufflers. Internal failures release fine metal debris throughout the system, and failure to replace these parts will contaminate and destroy the new compressor.
Yes, a car can run with a bad AC compressor as long as the pulley bearing spins freely. However, if the compressor pulley seizes completely, it will create friction against the belt. This can snap the serpentine belt, disabling the alternator and steering system. If you notice steering stiffness or belt noise, check the power steering system (https://autvex.com/news/how-much-power-steering-fluid-does-a-car-need/) and replace the pulley immediately.
A typical car AC compressor lasts between 8 and 12 years, or between 100,000 and 150,000 miles. To reach this lifespan, ensure your refrigerant charge is correct and run the AC system for 10 minutes every week to keep the seals lubricated. If you suspect electrical issues while troubleshooting, learn about basic automotive electrical safety (https://autvex.com/news/can-you-jump-start-a-car-in-the-rain/) before testing.
A failing compressor typically makes a loud metallic grinding, rattling, or squealing noise. A grinding noise indicates worn internal bearings or pistons. A loud squeal when you turn on the AC suggests a slipping clutch plate or a worn drive belt.
