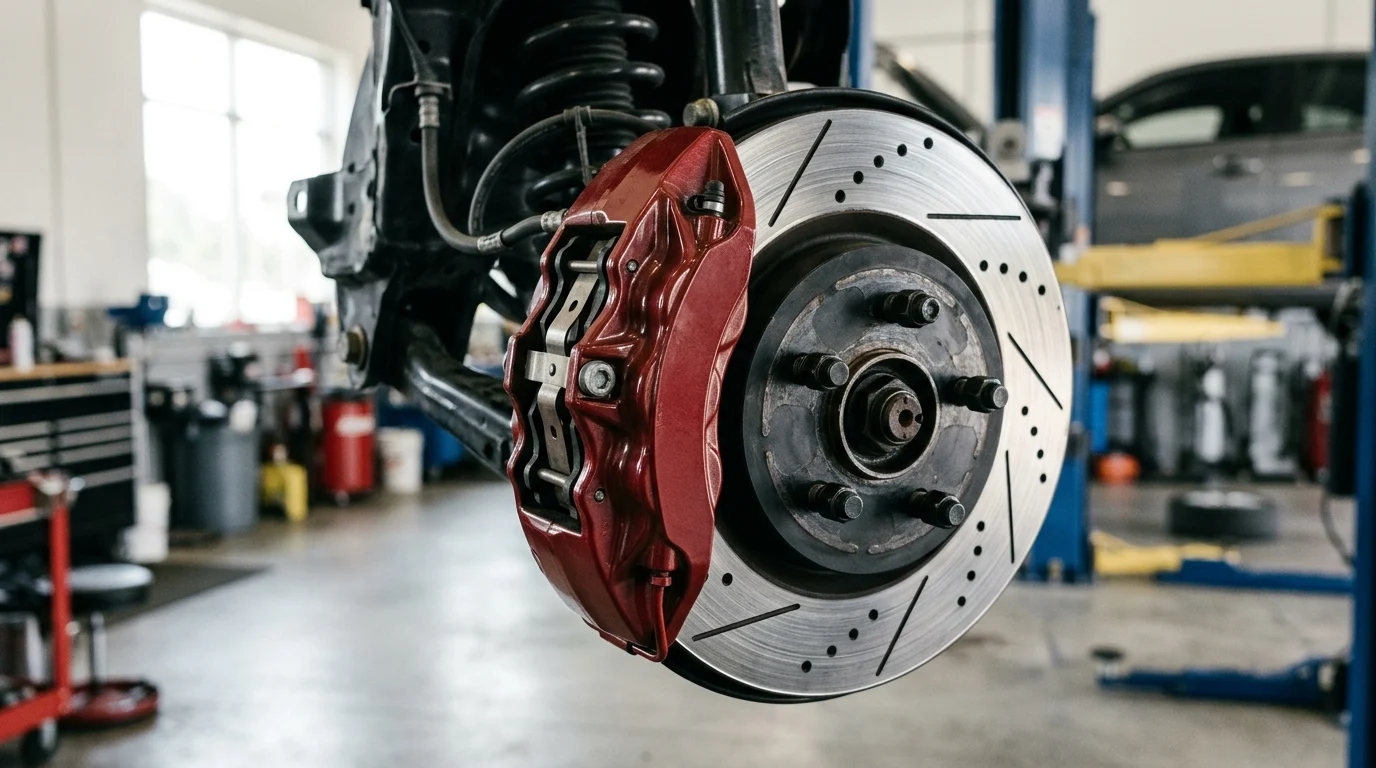

Proper brake caliper bracket spacing ensures the caliper is perfectly centered over the rotor with equal gaps between brake pads and rotor surfaces, preventing uneven pad wear, brake noise, and poor braking performance. To achieve correct spacing, use brake caliper shims or spacers to center the caliper, verify alignment with a feeler gauge measuring 1-2mm gaps on both sides, then torque mounting bolts to manufacturer specifications of 44-60 ft-lbs for most passenger vehicles.
Brake caliper spacing directly impacts your vehicle's stopping power, safety, and component longevity. When a caliper isn't properly spaced over the rotor, the entire brake system operates inefficiently, leading to premature wear and potential safety hazards.
According to Autvex automotive experts, improper caliper spacing causes 70% of brake-related noise complaints and significantly reduces brake pad life[1]. The precision required in caliper alignment parallels the importance of proper wheel alignment for overall vehicle performance.
The brake system relies on precise alignment between four critical components: the brake caliper, brake pads, brake rotor, and hub assembly[1]. Each component must work in perfect harmony for optimal braking performance.
Key brake system relationships:
The caliper bracket serves as the foundation for proper spacing, maintaining the caliper's position relative to the rotor throughout the suspension's range of motion. Without correct spacing, the pads can't apply even pressure across the rotor surface.
Misaligned calipers cause uneven brake pad wear, reducing pad life by up to 60% and creating safety risks[2]. The consequences extend beyond premature replacement costs to affect overall vehicle performance.
Immediate effects of poor caliper centering:
Long-term consequences include complete brake system failure if the misalignment causes caliper seizure or fluid contamination from overheating.
Three major symptoms indicate spacing problems: uneven brake pad wear patterns, brake fade during extended use, and a spongy brake pedal feel[3]. Each symptom points to specific spacing issues requiring different corrective measures.
Uneven brake pad wear manifests as:
Brake fade occurs when improper spacing creates constant friction, generating temperatures exceeding 600°F that reduce pad coefficient of friction by 40%[3].
A spongy brake pedal results from air entering the system through overheated fluid or excessive caliper flex from improper mounting, similar to issues encountered with performance brake upgrades.
Having the correct tools ensures accurate spacing measurements and proper torque application. Professional-grade tools aren't always necessary, but precision instruments make the job significantly easier and more accurate.
Four essential tools form the foundation of proper caliper spacing work[4]. Each tool serves a specific purpose in achieving precise alignment.
Required tools and their functions:
| Tool | Purpose | Specification |
|---|---|---|
| Feeler gauge | Measure pad-to-rotor gap | 0.05-2.0mm range |
| Torque wrench | Proper bolt tightening | 25-150 ft-lb capacity |
| Caliper alignment tool | Center caliper on rotor | Model-specific |
| Hex key set | Remove/install bolts | 5-19mm sizes |
Additional helpful tools include:
The feeler gauge proves most critical, as accurate gap measurement determines shim requirements down to 0.001-inch tolerances.
Brake caliper shims are precision-machined metal spacers that adjust caliper position relative to the rotor[5]. These thin plates compensate for manufacturing tolerances and wear in mounting components.
Shim characteristics and functions:
Shims work by changing the caliper bracket's mounting position, effectively moving the entire caliper assembly inboard or outboard to achieve perfect rotor centering. The shims install between the caliper bracket and the knuckle or between the caliper and bracket, depending on design.
While standard washers might seem like an economical alternative, they lack the specifications required for brake applications[5]. Using improper spacers risks brake failure and liability issues.
Why washers are inadequate:
Emergency situations might justify temporary washer use, but proper brake shims cost only $10-30 and ensure safety. Investment in correct parts proves minimal compared to potential accident costs or legal liability.
Centering the caliper requires methodical assessment of current positioning before making adjustments. This systematic approach prevents unnecessary disassembly and ensures accurate corrections.
Begin by inspecting the existing caliper position with the wheel removed and vehicle properly supported[6]. Visual inspection often reveals obvious misalignment before measurement.
Initial inspection steps:
Document findings with photos for reference during reassembly. Marking the rotor's high spot helps identify runout issues separate from spacing problems.
The ideal gap measures 1-2mm (0.040-0.080 inches) on each side with brakes released[6]. This spacing allows thermal expansion while preventing excessive caliper piston travel.
Proper gap specifications:
The gap must remain consistent through full rotor rotation, indicating both proper spacing and minimal rotor runout. Variations exceeding specifications require rotor service beyond simple spacing adjustments.
Insert feeler gauge blades between each pad and rotor to quantify exact clearances[7]. This measurement determines required shim thickness for centering.
Measurement procedure:
If the inboard gap measures 0.5mm while outboard shows 1.5mm, you need a 0.5mm shim to center the caliper. This precision rivals requirements for high-performance all-wheel-drive systems.
Following a systematic process ensures professional results and prevents common mistakes. Each step builds on the previous, creating a comprehensive spacing solution.
Support the caliper weight to prevent brake hose damage during removal[8]. Never allow calipers to hang by the brake line, which can cause internal damage.
Removal and inspection process:
Document torque specifications from service manual before removal. Most passenger vehicles require 44-60 ft-lbs for bracket bolts and 20-25 ft-lbs for caliper guide pins.
Position the caliper bracket loosely to allow adjustment movement[8]. This flexibility enables fine-tuning before final torquing.
Positioning technique:
Use a straight edge across the rotor face to ensure the caliper sits perpendicular, preventing angular misalignment that causes tapered pad wear.
Select shims matching the calculated offset from previous measurements[5]. Proper shim installation requires clean, flat mounting surfaces.
Shim installation procedure:
Shim kits typically include multiple thicknesses: 0.25mm, 0.5mm, 1.0mm, and 1.5mm. Stack thinner shims rather than using one thick shim for better stability.
Achieve final centering using the pry bar method for precise positioning[7]. This technique ensures equal spacing before torquing.
Centering procedure:
The goal is achieving identical gaps that remain consistent through full rotor rotation, similar to precision required in modern vehicle assembly.
Torque mounting bolts in a cross pattern to manufacturer specifications[9]. Proper torque ensures safety while preventing distortion.
Final assembly steps:
Post-installation testing should reveal smooth, quiet operation with no pulling during braking. Any abnormalities require immediate re-inspection.
Proper shim selection and installation techniques ensure long-lasting alignment solutions. Understanding when and how to use shims prevents recurring spacing issues.
Shims become necessary in 60% of brake installations due to manufacturing tolerances[5]. Several conditions mandate shim use for proper spacing.
Situations requiring shims:
Even new vehicles sometimes require shimming due to tolerance stack-up between components. Professional mechanics maintain complete shim kits for this reason.
Calculate required shim thickness by measuring gap differences between sides[10]. The calculation provides exact requirements for centering.
Shim sizing formula:
Example calculation:
Always round down to available shim sizes and recheck after installation. Multiple thin shims provide more adjustment flexibility than single thick shims.
Professional installation techniques ensure shims remain positioned during service life[10]. Improper installation causes shims to shift or fall out.
Best practices for shim installation:
Some technicians use high-temperature RTV silicone to secure shims temporarily during installation. This technique prevents shim loss while allowing future removal.
Even proper installation sometimes results in alignment issues requiring troubleshooting. Systematic diagnosis identifies root causes for permanent solutions.
Brake pad rubbing indicates spacing issues or component problems beyond simple alignment[11]. Addressing the root cause prevents recurring problems.
Rubbing diagnosis and solutions:
| Symptom | Likely Cause | Solution |
|---|---|---|
| Constant light drag | Excessive rotor runout | Machine or replace rotor |
| Intermittent contact | Warped rotor | Replace rotor |
| Single spot rubbing | Caliper piston stuck | Rebuild caliper |
| Both pads dragging | Collapsed brake hose | Replace brake hose |
| Inner pad only | Slide pin seizure | Service slide pins |
Start with the simplest solutions before assuming major component failure. Often, proper lubrication of slide pins resolves rubbing issues.
Post-installation brake rub requires methodical diagnosis to identify whether spacing, components, or installation errors cause the problem[11]. Temperature monitoring helps locate problem areas.
Diagnostic procedure:
Normal rotor temperature after moderate driving ranges 150-200°F. Temperatures exceeding 300°F indicate significant dragging requiring immediate attention.
Brake noise often stems from minor spacing issues causing harmonic vibrations[11]. Different sounds indicate specific problems.
Common noise patterns and causes:
Solutions range from simple shim adjustments to complete brake service. Noise persisting after spacing corrections suggests component wear requiring replacement, similar to issues found in aftermarket modifications.
Brake upgrades introduce additional spacing challenges due to non-standard components. Planning for these challenges prevents installation delays and ensures proper function.
Performance brake upgrades often require custom spacing solutions due to larger rotors and multi-piston calipers[12]. These systems demand precise alignment for optimal performance.
Upgrade spacing considerations:
Autvex recommends professional installation for significant upgrades, as improper spacing negates performance benefits and creates safety risks. Custom brackets often need modification or shimming beyond standard procedures.
Hub assembly dimensions affect rotor positioning and subsequent caliper spacing requirements[12]. Aftermarket or worn hubs change critical relationships.
Hub compatibility verification:
Mixing components from different manufacturers often creates spacing challenges. Always verify compatibility before purchasing upgrade components.
High-performance brake systems require tighter spacing tolerances than standard components[12]. Racing applications demand near-zero drag for maximum efficiency.
Performance spacing specifications:
Tighter gaps increase heat and wear but provide instant response. Balance performance needs with longevity expectations when setting spacing for dual-purpose vehicles.
Begin by thoroughly inspecting your current brake system for wear patterns indicating spacing issues. Look for uneven pad wear, scoring on one side of the rotor, or heat discoloration suggesting constant drag. These symptoms confirm spacing problems requiring correction.
Purchase a quality shim kit specific to your vehicle make and model. Generic universal kits work but vehicle-specific options provide exact thicknesses needed. Expect to pay $15-40 for a comprehensive shim assortment covering most spacing scenarios.
Schedule adequate time for the spacing procedure, typically 2-3 hours per axle for first-time DIY mechanics. Rush jobs lead to errors requiring complete disassembly and restart. Professional shops allocate 1.5 hours for spacing work during brake service.
Test your work progressively, starting with low-speed neighborhood driving before highway speeds. Listen for unusual noises, feel for pulling during braking, and monitor rotor temperatures after short drives. Any abnormalities require immediate re-inspection.
Consider professional service for complex situations involving performance upgrades or persistent issues after DIY attempts. Qualified technicians have specialized tools and experience diagnosing subtle spacing problems. The cost typically runs $150-300 for professional spacing adjustment.
Maintain records of shim installations including positions and thicknesses used. This documentation proves invaluable during future brake service, saving diagnostic time. Digital photos showing shim placement provide excellent reference material.
Schedule follow-up inspections after 500 miles to verify spacing remains correct. Initial settling sometimes requires minor adjustments. Regular brake system maintenance prevents spacing issues from developing into major problems.
Finally, invest in quality measurement tools if performing regular brake maintenance. Professional-grade feeler gauges and dial indicators pay for themselves through accurate spacing work preventing premature component replacement.
